Grey / White Color Lean Coated Steel Pipe , Cold Rolled Pe Steel Pipe Glossy Surface

Name: Grey White Color Lean Coated Steel Pipe Cold Rolled Pe Steel Pipe Glossy Surface
Brand: DIYA
Price: 0.6 USD

China Grey / White Color Lean Coated Steel Pipe , Cold Rolled Pe Steel Pipe Glossy Surface wholesale

Brand Name : DIYA

Model Number : Series with wall thick

Certification : ISO9001

Place of Origin : China

MOQ : 600 meters

Price : $0.6 per meter

Supply Ability : 1000000 meters one month

Delivery Time : 5-25 days

Packaging Details : nylon bags or customer need

Standard : GB, GB/T 9711.2-1999

material : Steel and iron

surface : plastic coated

Techinc : Cold rolled

Thickness : 0.8-2.0mm

Contact Now

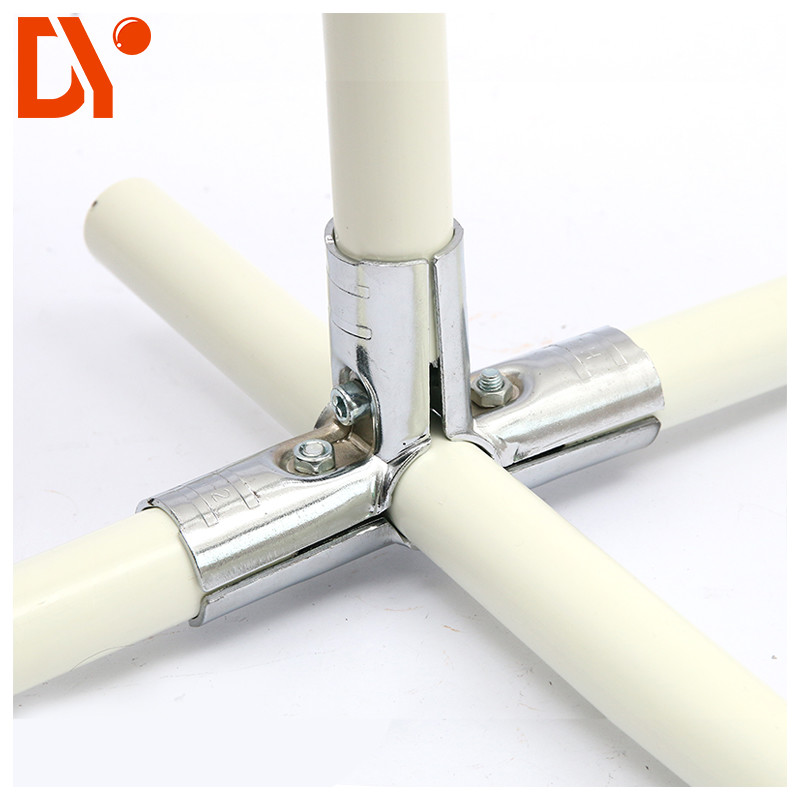

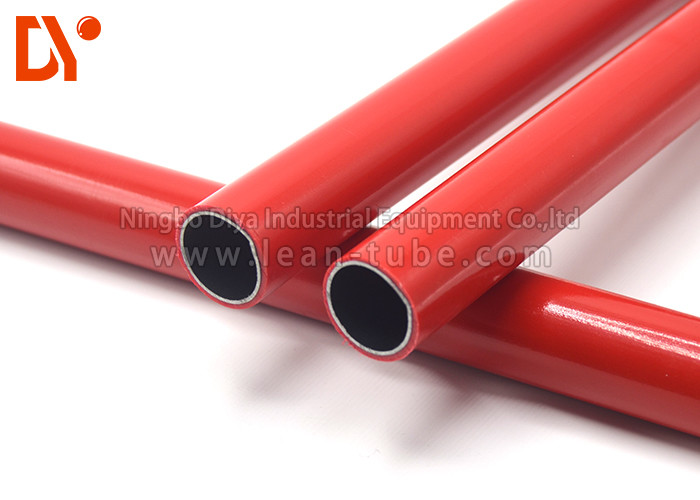

PE Coated Colorful Lean Tube applied for Tote Cart and Pipe rack or for Logistic

Product Description

Inside Pipe: Steel zinc plated
Outer coated Material: PE/ABS/PE-ESD
Pipe Diameter: φ28mm
Standard Length:4 meters/bar,or according to customers demand.
Standard color: White, Milk white, light yellow, black.
Or red, blue, yellow,green,gray, any colors according the customer's demand

THE STRENGTH OF COATED PIPES
1)THE STRENGTH OF COATED PIPES
The procedure is for testing the center of a pipe
A. Simply Supported pipe.
B. Concentrated load on the center of the pipe
C. Speed of Loading: 1kg/min
D. Temperature: 20°c

__________________________________________________________________

Steel thickness 0.8mm

DimensionA	Proportional Limit load
450mm	Approx. 1275N
900mm	Approx. 632N
1,000mm	Approx. 520N
1,100mm	Approx. 438N
1,300mm	Approx. 395N
1,500mm	Approx. 344N
1,800mm	Approx. 288N

Steel thickness 1.0mm

DimensionA	Proportional Limit load
450mm	Approx. 1593N
900mm	Approx./ 790N
1,000mm	Approx./ 650N
1,100mm	Approx./ 548N
1,300mm	Approx./ 493N
1,500mm	Approx./ 430N
1,800mm	Approx./ 360N

Steel thickness 1.2mm

DimensionA	Proportional Limit load
450mm	Approx. 1911N
900mm	Approx. 948N
1,000mm	Approx. 780N
1,100mm	Approx. 657N
1,300mm	Approx. 591N
1,500mm	Approx. 516N
1,800mm	Approx. 432N

Steel thickness 1.5mm

DimensionA	Proportional Limit load
450mm	Approx. 2404N
900mm	Approx. 1193N
1,000mm	Approx. 982N
1,100mm	Approx. 877N
1,300mm	Approx. 789N
1,500mm	Approx. 649N
1,800mm	Approx. 544N

Steel thickness 2.0mm

DimensionA	Proportional Limit load
450mm	Approx./ 3104N
900mm	Approx./ 1893N
1,000mm	Approx./ 1682N
1,100mm	Approx./ 1577N
1,300mm	Approx./ 1489N
1,500mm	Approx./ 1349N
1,800mm	Approx./ 1244N
